4. Introduction in Ansible

4.1. About Ansible

  • K-I-S-S configuration management tool
  • invented by Michael DeHaan
  • project started in 2012
  • written in Python
  • open source
  • configuration as data, not code -> no coding skills needed
  • human readable configuration
  • big community

4.2. Functions

  • configuration management tool
  • application deployment
  • orchestration tool
  • remote execution

4.3. Architecture

  • agentless architecture

  • masterless -> can run from everywhere

  • python is needed on the managed host

  • yaml definition

  • jinja2 template engine

  • a lot of modules for different tasks (packages, services, configs, ...)

  • idempotent -> always get the same state on the managed host

  • communication methods

    • push via ssh (recommended)
    • pull from SCM and run locally
    • manage everything local

4.4. Requirements

4.4.1. Control Machine Requirements

  • Ansible Core
  • Python 2.4 or later
  • Inventory & Config File
  • Ansible project

4.4.2. Managed Node Requirements

  • SSH for push architecture
  • Python 2.4 or later

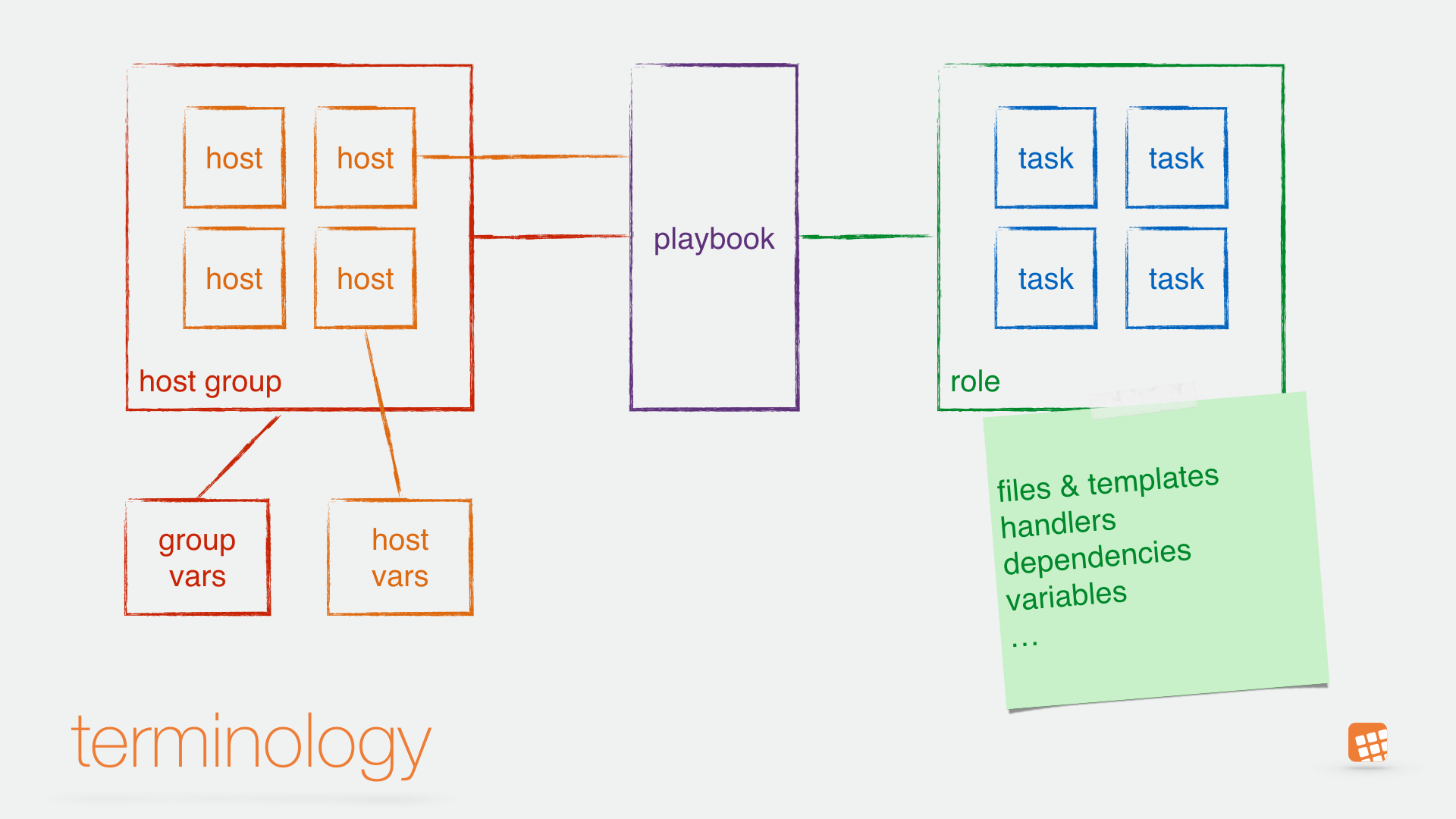

4.5. Terminology

  • Playbooks contain Plays

    • Plays contain Roles (or Tasks)

      • Roles contain Tasks

        • Tasks call Modules
../_static/terminology.png

4.6. First steps

4.6.1. on the Control Machine

  • Installation of Ansible
  • Create a user
  • Create a ssh-key
  • Rollout the ssh-key to all managed Nodes
  • Test SSH connection (without Ansible)
  • add managed nodes to inventory file
  • add basic configuration file ansible.cfg
  • run your first Ansible tests

4.6.2. on the managed Nodes

  • Create a user
  • add sudo rule

4.7. Installation of Ansible

  • from OS packages
  • from pip
  • from git
# via apt on debian/ubuntu
apt-get install ansible

# via yum on redhat/centos - EPEL repo needed
yum install ansible

# via pip
pip install ansible

# via github
git clone https://github.com/ansible/ansible.git

Hint

On Red Hat / Centos is the EPEL Channel needed.

Important

On some distributions is not the latest Ansible version available if you install Ansible via OS package manager. In that case, use pip.

Hint

Ansible installation via pip includes no configuration file.

4.8. Installation of PIP

On Debian-based Linux derivates

apt-get install python-pip

On RedHat-based Linux derivates (EPEL repo needed)

yum install python-pip

On Mac OS X pip will automatically be installed if you install Python by brew

brew install python

Hint

In case brew cannot be found you’ve to install Homebrew first.
